Additional information
| Size | 1 Quart, 1 Gallon, 4×1 Gallon, 5 Gallon, 55 Gallon |
|---|
Learn More
| OR | |
|---|---|
| Place Order Here | |
We accept Visa, MasterCard & American Express |
|
| Product Properties | |
|---|---|

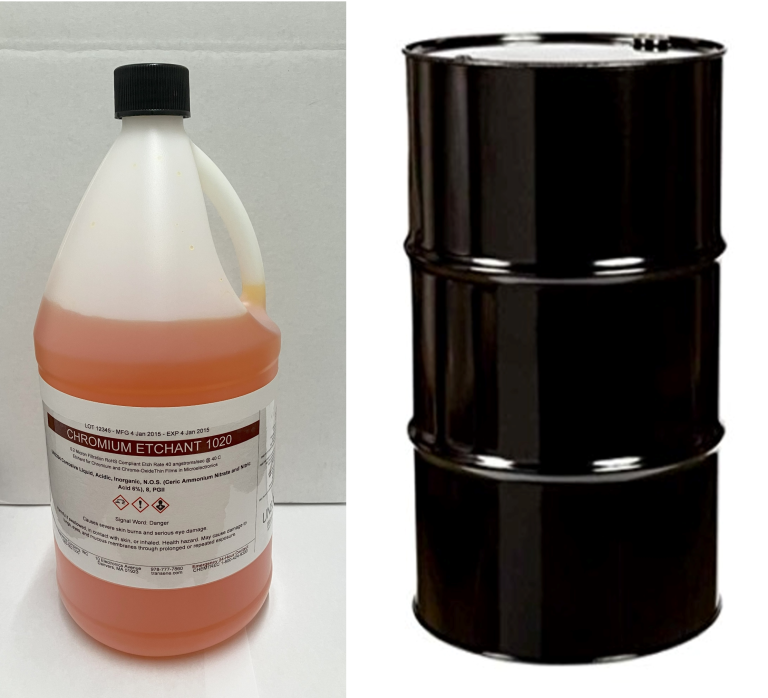

| Description | Etchant for chromium thin films for microelectronics applications offering excellent compatibility with positive and negative photoresists. It provides fine-line control with minimal undercutting. High purity formulations filtered to 0.2 micron are ideal for critical devices. Transene Chromium Etchants 1020AC is a high purity ceric ammonium nitrate system for precise, clean etching of chromium and chromium oxide films. It is nitric acid-free and exhibits a slower etch rate. 1020AC shows minimal undercutting. |
| Features | High purity, 0.2 micron filtration, Excellent photoresist compatibility, Uniform etch rates and patterns |
| How to Increase Etch Rate? | 1. The rate will approximately double with every 10°C increase in temperature. 2. Increase the rate of stirring or agitation. |
| How to Reduce Etch Rate? | Adding 1 part deionized water to 2 parts etchant will reduce the etch rate approximately 50%. |
| Do I Need to Dilute the Etchant? | No, it is ready to use. |
| How to Reduce Undercutting? | Increase the rate of stirring or agitation. |
| Appearance | Clear orange |
| pH | Acidic |
| Etch Rate at 40°C | 40 Å/sec. |
| Shelf Life | 1 year |
| Storage Conditions | Ambient |
| Filtration | 0.2 um |
| Recommended Operating Temperatures | 20-80°C (30-40°C most common) |
| Rinse | Deionized water |
| Photoresist Recommendations | PKP-308PI or HARE SQ (SU-8 type) |
| Select Compatible Materials | Au, Ti, oxide, nitride, Si |
| Select Incompatible Materials | Al, Ni, Cu, NiCr |
| Compatible Plastics | HDPE, PP, Teflon, PFA, PVC |
| Country of Origin | USA |
| Isotropy | Isotropic |
| Incompatible Chemicals | Strong bases |
| Safety Data Sheet | Download SDS |
| Size | 1 Quart, 1 Gallon, 4×1 Gallon, 5 Gallon, 55 Gallon |
|---|
