Additional information
| Size | 1 Quart, 1 Gallon, 4×1 Gallon, 5 Gallon, 55 Gallon |
|---|
Learn More
| OR | |
|---|---|
| Place Order Here | |
We accept Visa, MasterCard & American Express |
|
| Product Properties | |
|---|---|
| How do I increase the etch rate? | 1. The rate will approximately double with every 10°C increase in temperature. 2. Increase the rate of stirring or agitation. |
| How do I reduce the etch rate? | Adding 1-part deionized water to 2-parts etchant will reduce the etch rate approximately 50%. |
| Do I need to dilute the etchant? | No, it is ready to use. |
| How do I reduce undercutting? | Increase the rate of stirring or agitation. |
| Appearance | Brown |
| pH | 8 |
| Etch Rate at 20°C | 30 Å/sec (immersion), 80 Å/sec (spray) |
| Shelf Life | 1 year |
| Storage Conditions | Ambient |
| Filtration | 1 um |
| Recommended Operating Temperatures | 20-80°C (30-40°C most common) |
| Rinse | Deionized water |
| Photoresist Compatibility | PKP-308PI or HARE SQ (SU-8 type) |
| Select Compatible Materials | Au, Ni, Cu, alumina |
| Select Incompatible Materials | Al, Si, Si-O |
| Compatible Plastics | HDPE, PP, Teflon, PFA, PVC |
| Country of Origin | USA |
| Isotropy | Isotropic |
| Incompatible Chemicals | Strong acids |
| Additional Information | — |

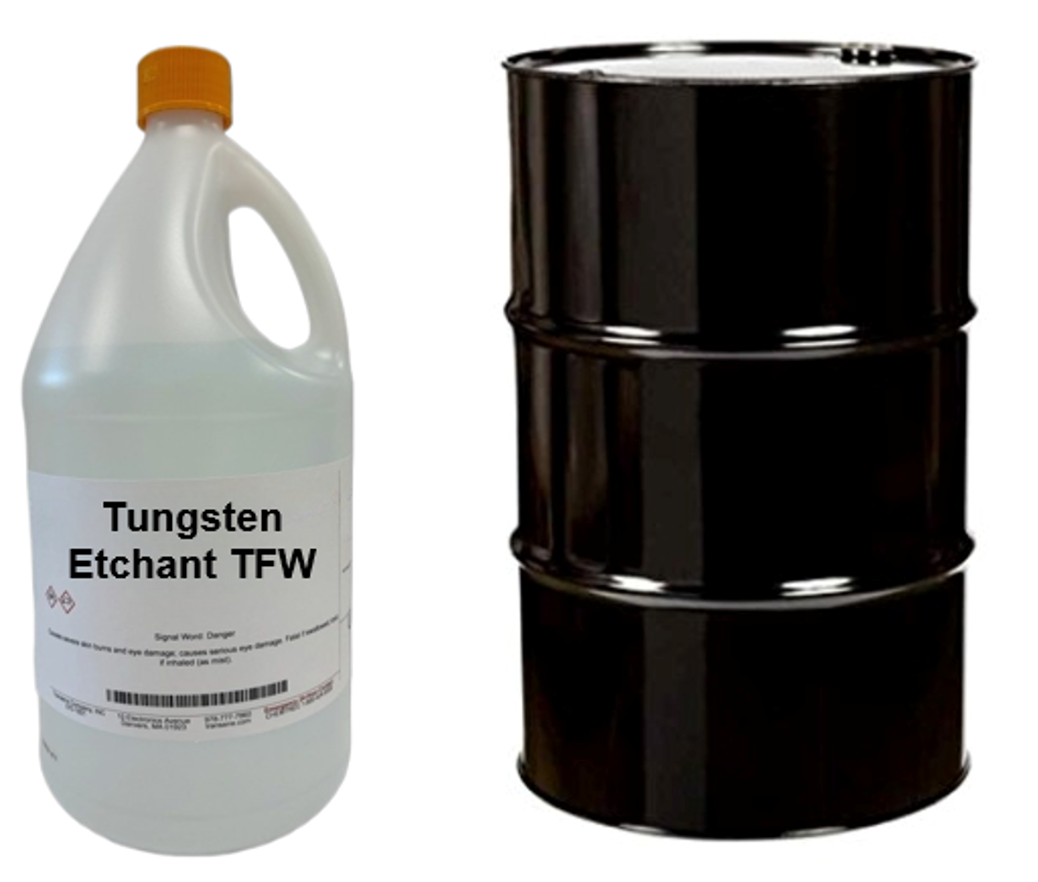

| SDS | Download Tungsten Etchant TFW SDS |
| Size | 1 Quart, 1 Gallon, 4×1 Gallon, 5 Gallon, 55 Gallon |
|---|
