Additional information
| Size | 1 Quart, 1 Gallon, 4×1 Gallon, 5 Gallon, 55 Gallon |
|---|
Learn More
| OR | |
|---|---|
| Place Order Here | |
We accept Visa, MasterCard & American Express |
|
| Product Properties | |
|---|---|

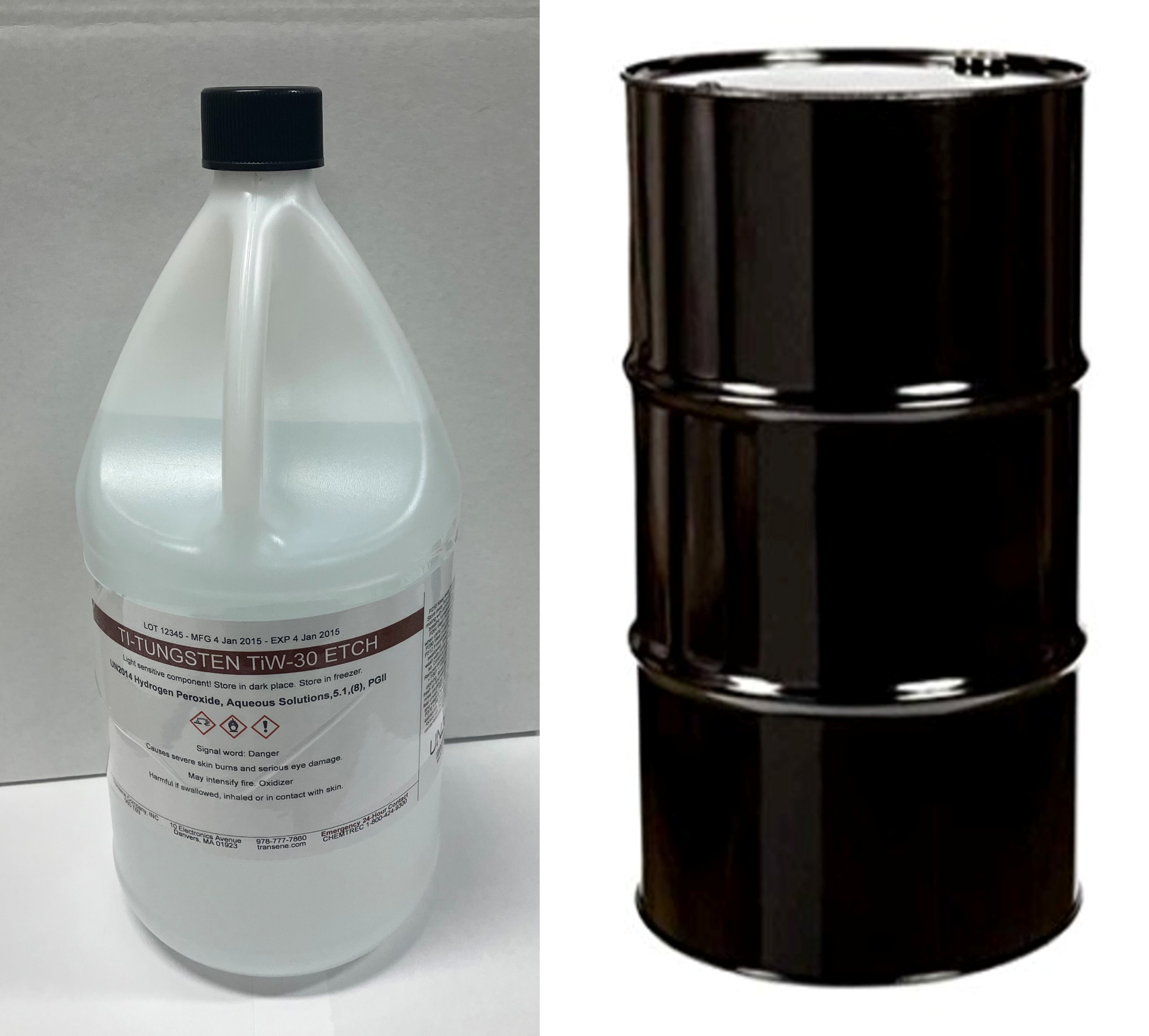

| Product Name | Ti-Tungsten Etchant TiW-30 |
| How do I increase the etch rate? | 1. The rate will approximately double with every 10°C increase in temperature. 2. Increase the rate of stirring or agitation. |
| How do I reduce the etch rate? | Adding 1 part deionized water to 2 parts etchant will reduce the etch rate approximately 50%. |
| Do I need to dilute the etchant? | No, it is ready to use. |
| How do I reduce undercutting? | Increase the rate of stirring or agitation. |
| Appearance | Clear, colorless |
| pH | Mild acid |
| Etch Rate at 40°C | 10-15 Å/sec |
| Shelf Life | 6 months |
| Storage Conditions | -40 to 0 °C |
| Filtration | 0.2 um |
| Recommended Operating Temperatures | 20-80°C (30-40°C most common) |
| Rinse | Deionized water |
| Photoresist Compatibility | KLT6000 Series, KLT 5300 Series, HARE SQ (SU-8 type), TRANSIST, or PKP-308PI |
| Select Compatible Materials | Au, glass, oxide, nitride, Ni, Cu |
| Select Incompatible Materials | Ti |
| Compatible Plastics | HDPE, PP, Teflon, PFA, PVC |
| Country of Origin | USA |
| Isotropy | Isotropic |
| Incompatible Chemicals | Flammables, combustibles |
| Additional Information | Oxidizer. Store with vented cap. |
| SDS | Download Ti-Tungsten TiW-30 SDS |
| Size | 1 Quart, 1 Gallon, 4×1 Gallon, 5 Gallon, 55 Gallon |
|---|
