Additional information
| Type | SQM0.05, SQM0.1, SQM0.25, SQM0.5, SQM1, SQM2 |
|---|---|
| Size | 100ml, 500ml, 1L, 4L/1Gal, 4x4L, Production |
Learn More
| OR | |
|---|---|
| Place Order Here | |
We accept Visa, MasterCard & American Express |
|
| Product Properties | |
|---|---|

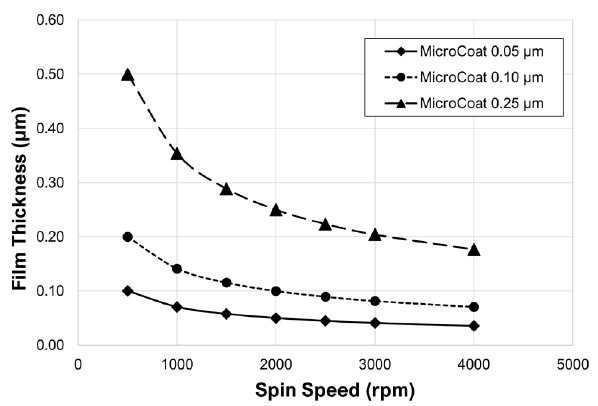

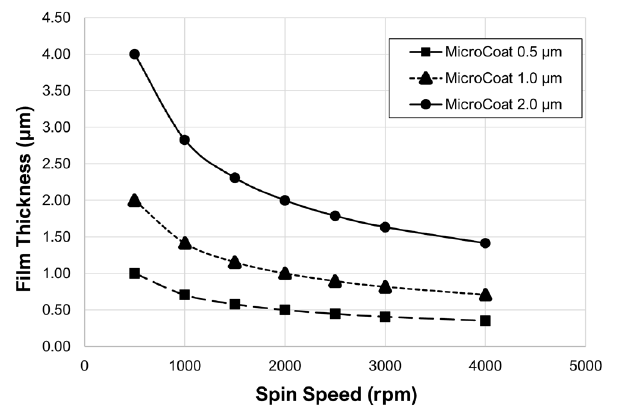

| Description | SQ MicroCoat resists are epoxy-based negative photoresists designed for thin films, high temperatures, and severe chemical applications. SQ MicroCoat is designed for use in thin films ranging from 0.05 – 2.0 µm and is often used in advanced device applications. Ultra-thin coatings of 50 nm fully cross-linked are achievable and used for imaged surface protection. |
| Lower Pricing | SQ is designed to be competitive in the market with prices that beat the competition. Better quality for less cost. Contact KemLab or our distributors for more information and pricing. |
| Superior Raw Materials | SQ Series SU-8 epoxy resist uses a superior quality resin specially designed for the microelectronics industry. This superior resin manufacturing process produces a cleaner, more consistent negative epoxy photoresist with fewer particles, more transparency, and fewer microbubbles. |
| Plug-n-Play | SQ resists are fully compatible with established SU-8 lithographic processes. Pull out SU-8 negative epoxy and plug in KemLab SQ. |
| Application-Focused Quality Control | Value-added testing was identified and implemented to benefit specific microfluidic and optical industry requirements. |
| Better Optical Transparency | SQ Series SU-8 resin material is visually cleaner, less yellow, and more transparent, resulting in improved transmission and resistance to oxidative yellowing versus legacy SU-8 products. |
| Data Sheet | Download link |
| Type | SQM0.05, SQM0.1, SQM0.25, SQM0.5, SQM1, SQM2 |
|---|---|
| Size | 100ml, 500ml, 1L, 4L/1Gal, 4x4L, Production |
