| Product Properties | |
|---|---|

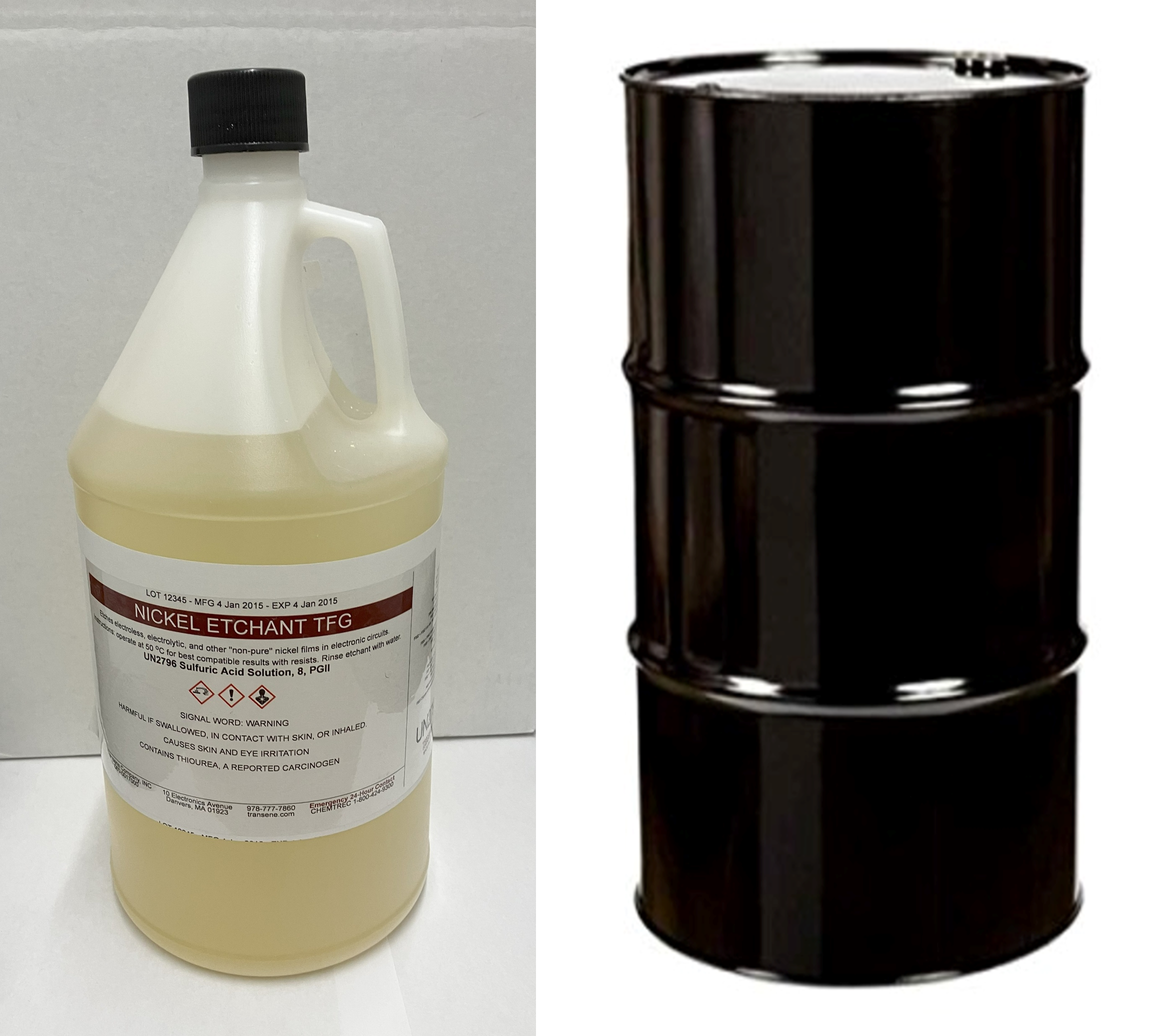

| Product Name | Nickel Etchant TFG |
| How do I increase the etch rate? | 1. The rate will approximately double with every 10°C increase in temperature. 2. Increase the rate of stirring or agitation. |
| How do I reduce the etch rate? | Adding 1-part deionized water to 2 parts etchant will reduce the etch rate approximately 50%. |
| Do I need to dilute the etchant? | No, it is ready to use. |
| How do I reduce undercutting? | Increase the rate of stirring or agitation. |
| Appearance | Light yellow |
| pH | Strong acid |
| Etch Rate at 40°C | 50 Å/second |
| Shelf Life | 1 year |
| Storage Conditions | Avoid freezing |
| Filtration | 1 μm |
| Recommended Operating Temperatures | 20–80°C (30–40°C most common) |
| Rinse | Deionized water |
| Photoresist Recommendations | KLT6000 Series, KLT 5300 Series, HARE SQ (SU-8 type), TRANSIST, or PKP-308PI |
| Select Compatible Materials | GaAs, Au, Cu (most applications), glass, alumina, nitride |
| Select Incompatible Materials | Al, Ag |
| Compatible Plastics | HDPE, PP, Teflon, PFA, PVC |
| Country of Origin | USA |
| Isotropy | Isotropic |
| Incompatible Chemicals | Strong bases |
| Additional Information | Suitable for electroless or electrolytic nickel |
| Safety Data Sheet | Download SDS |
| Size | 1 Quart, 1 Gallon, 4×1 Gallon, 5 Gallon, 55 Gallon |
|---|
